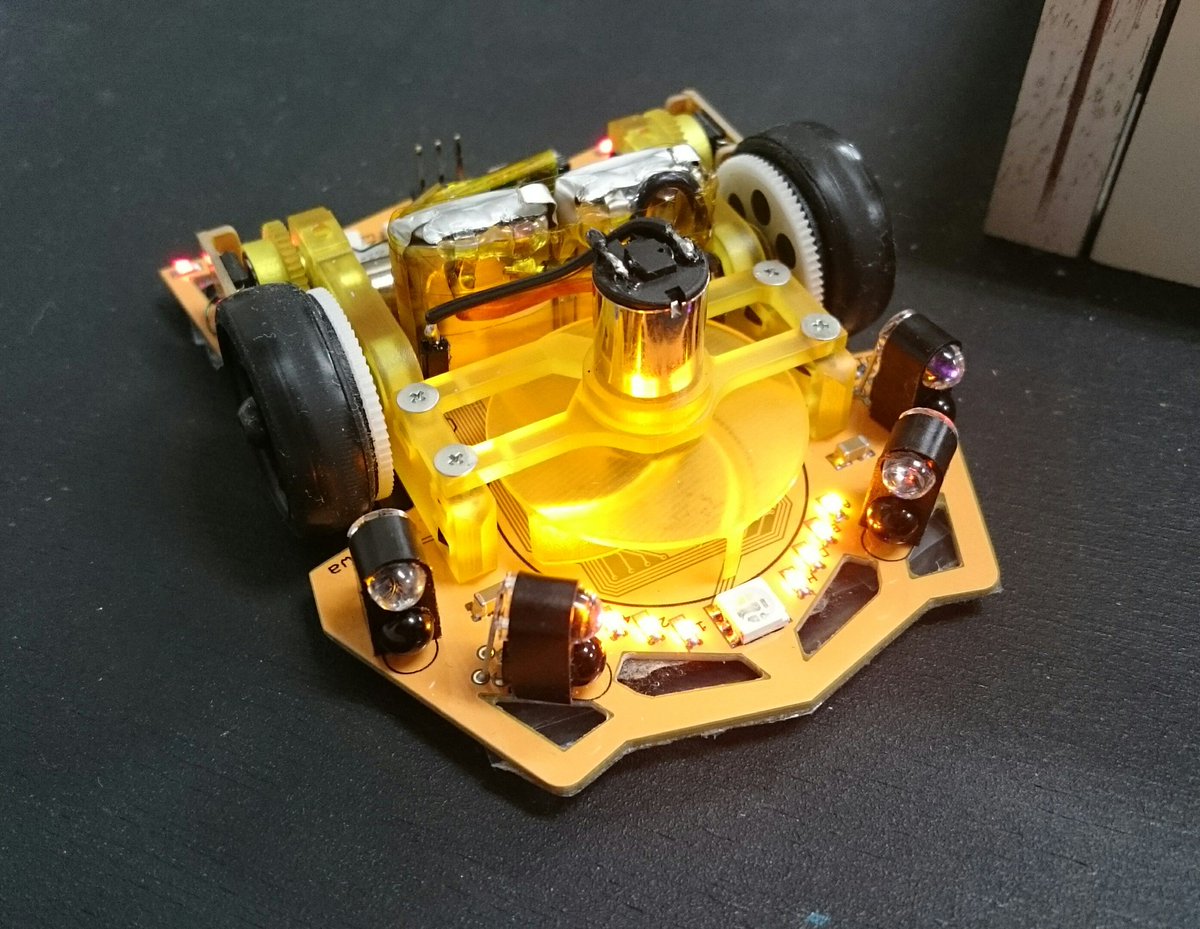

Micromouse

Infrarred sensors

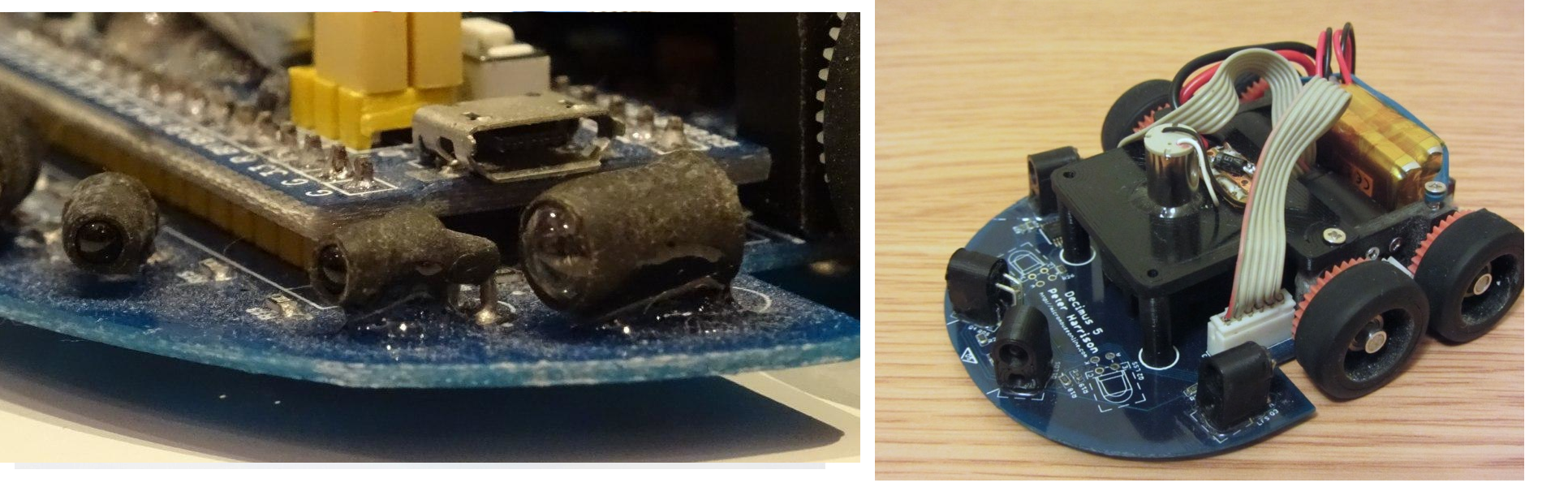

Mount

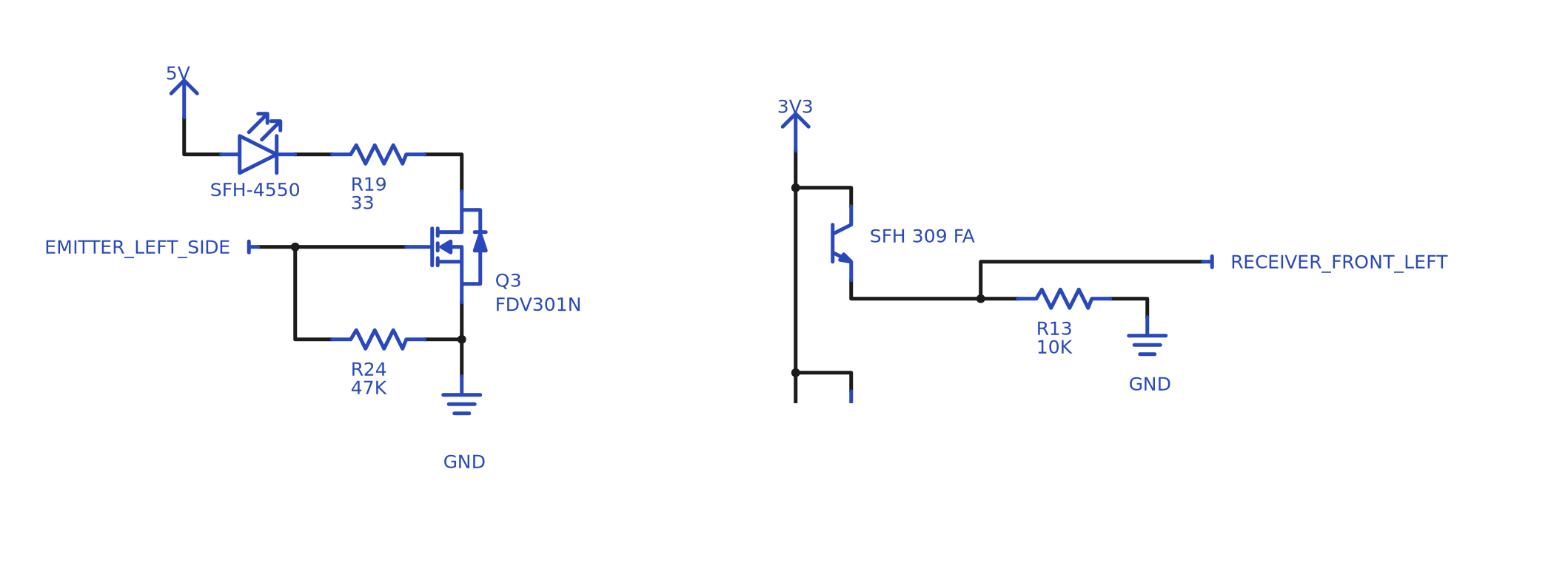

Simple schematic

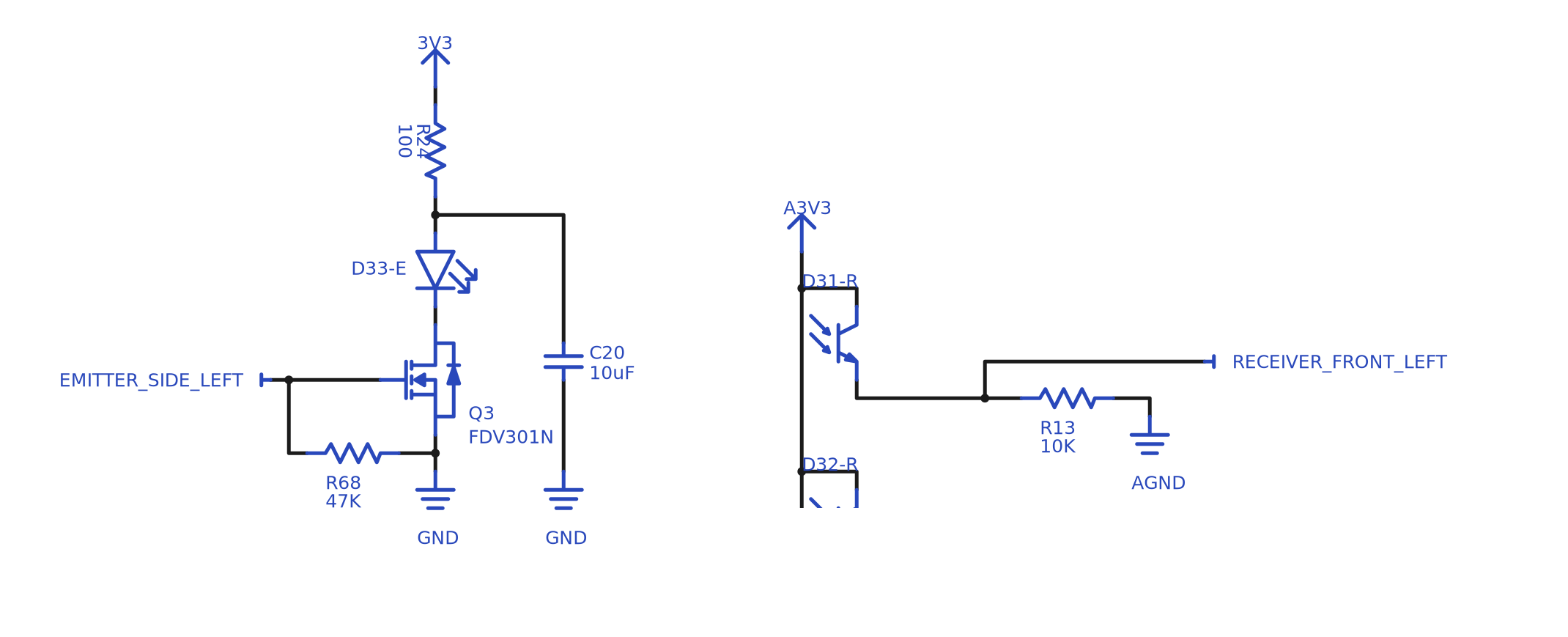

Complex schematic

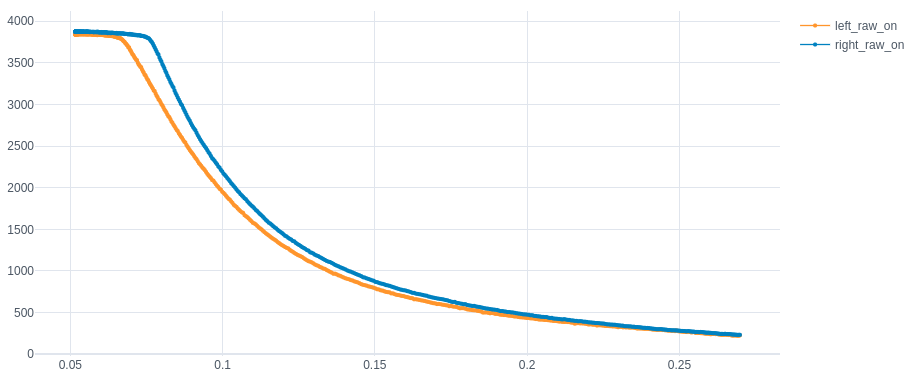

Distance calculation

\[ y = e^{\frac{a}{x+b}} \]

More on micromouseonline.com

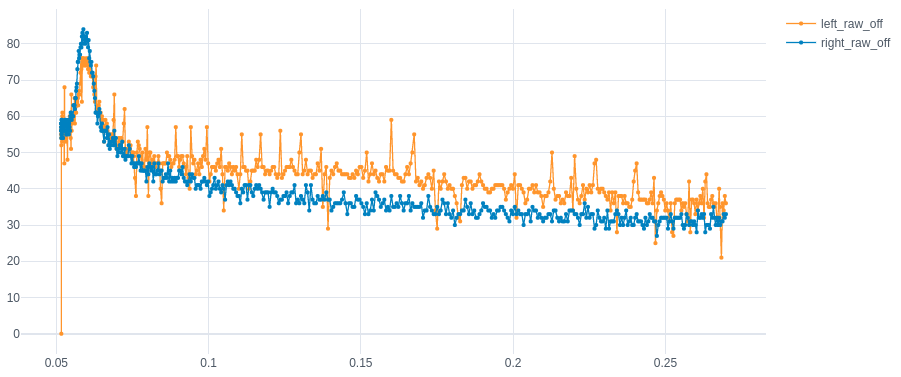

Noise cancellation

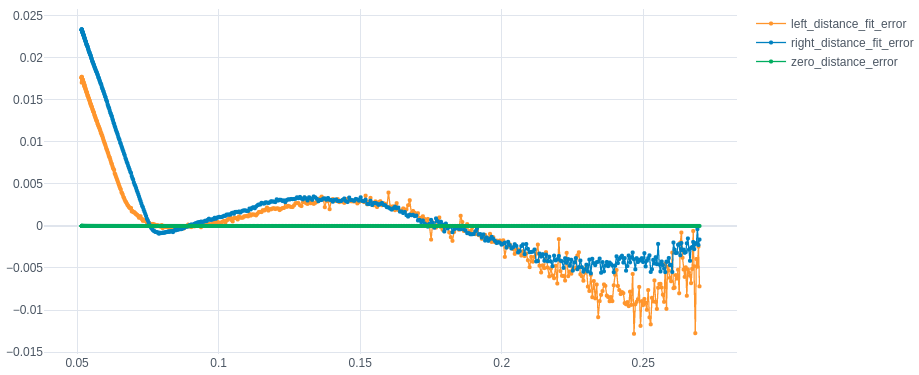

Errors

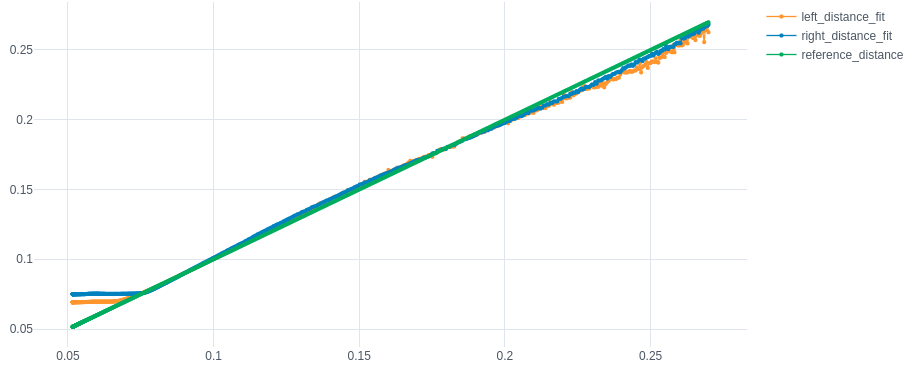

Linearity

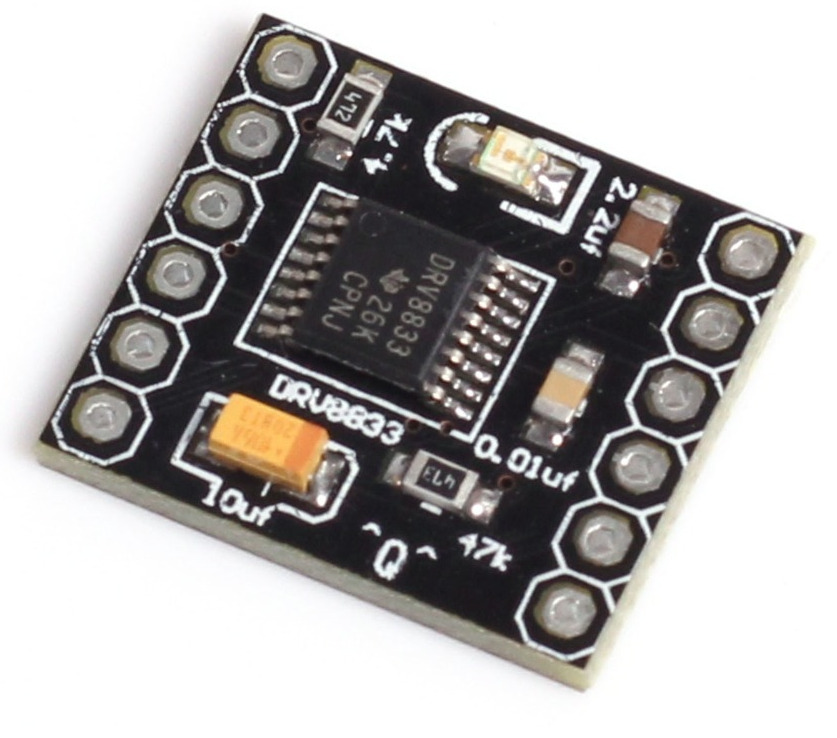

Motor Drivers

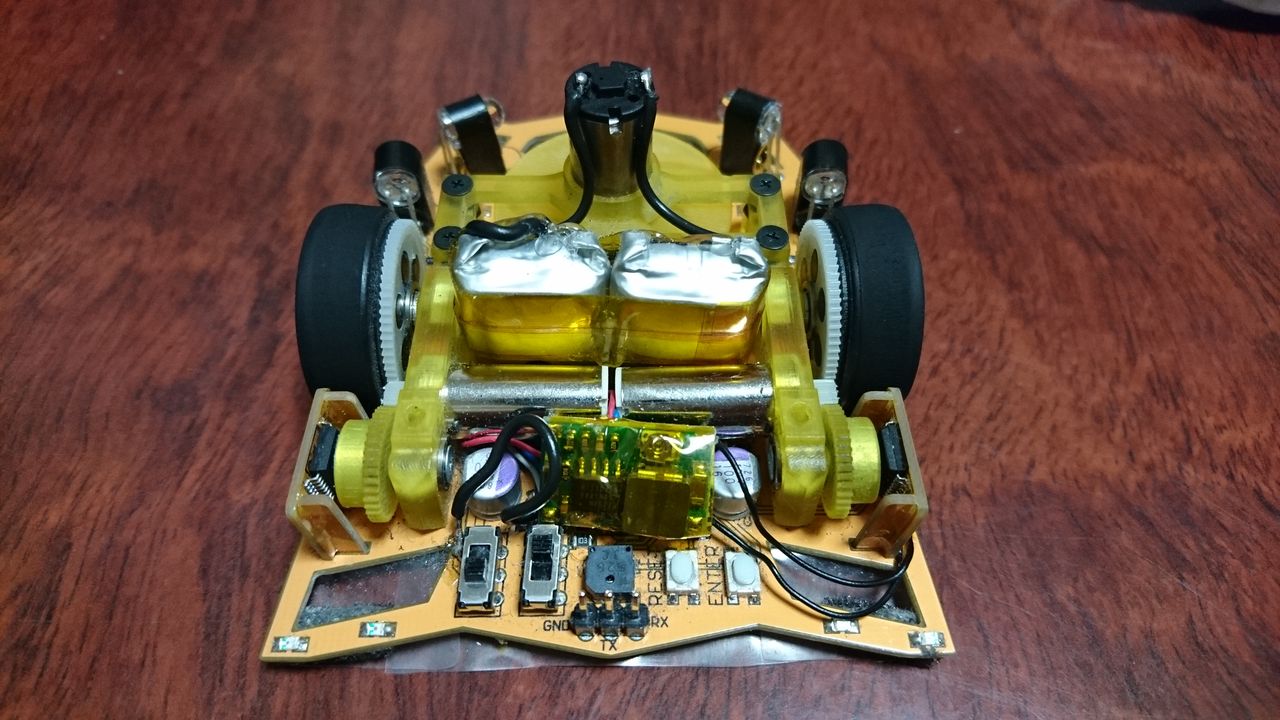

Encoders

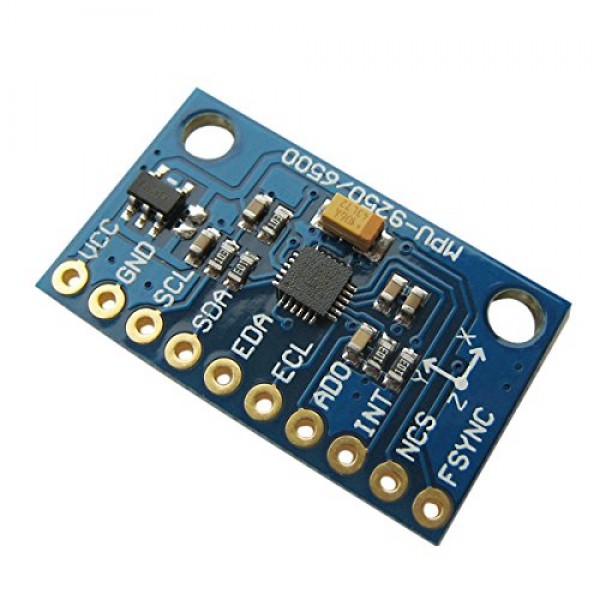

Gyroscope

LEDs, speaker, buttons, switch

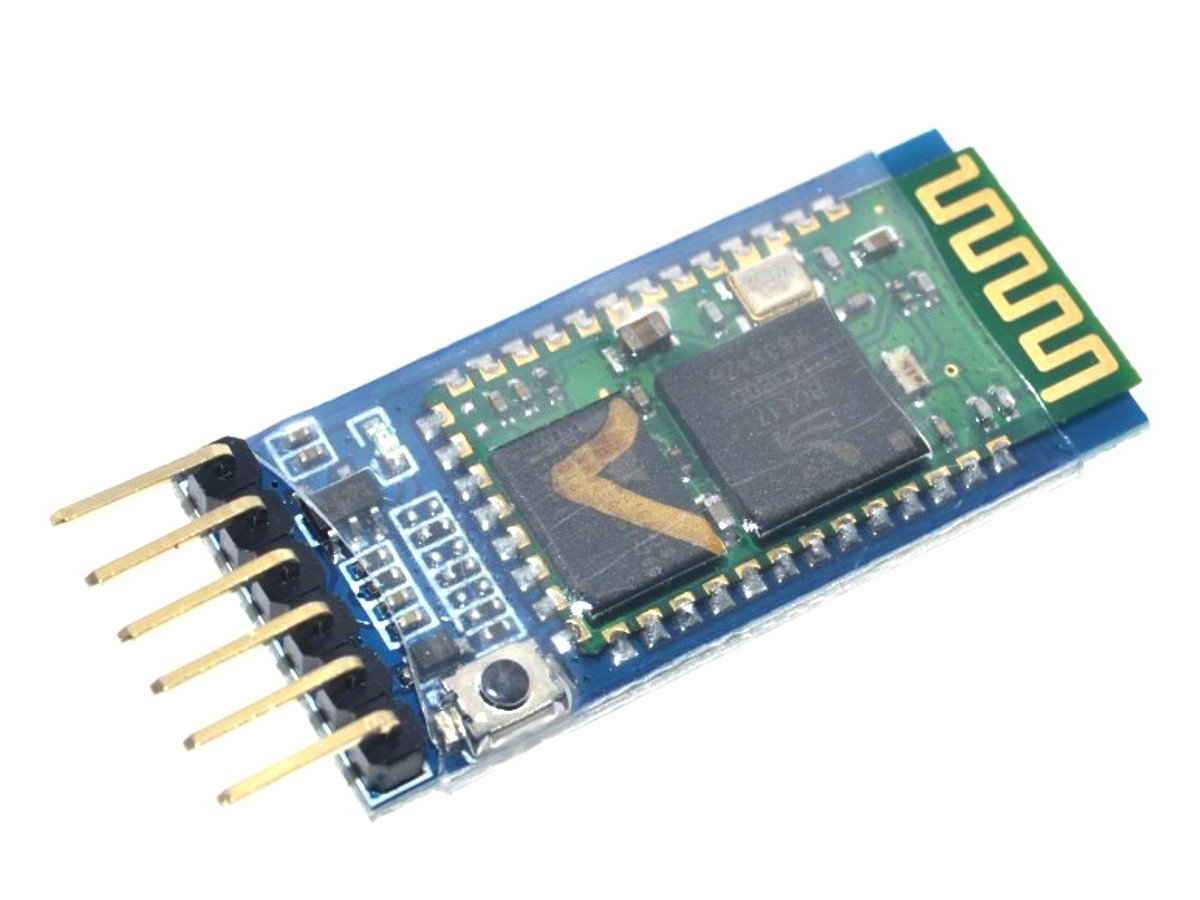

Bluetooth

Battery and power coversors

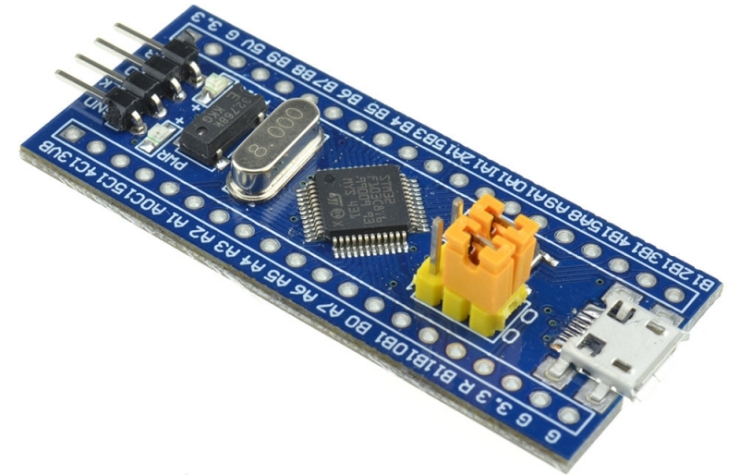

Microcontroller

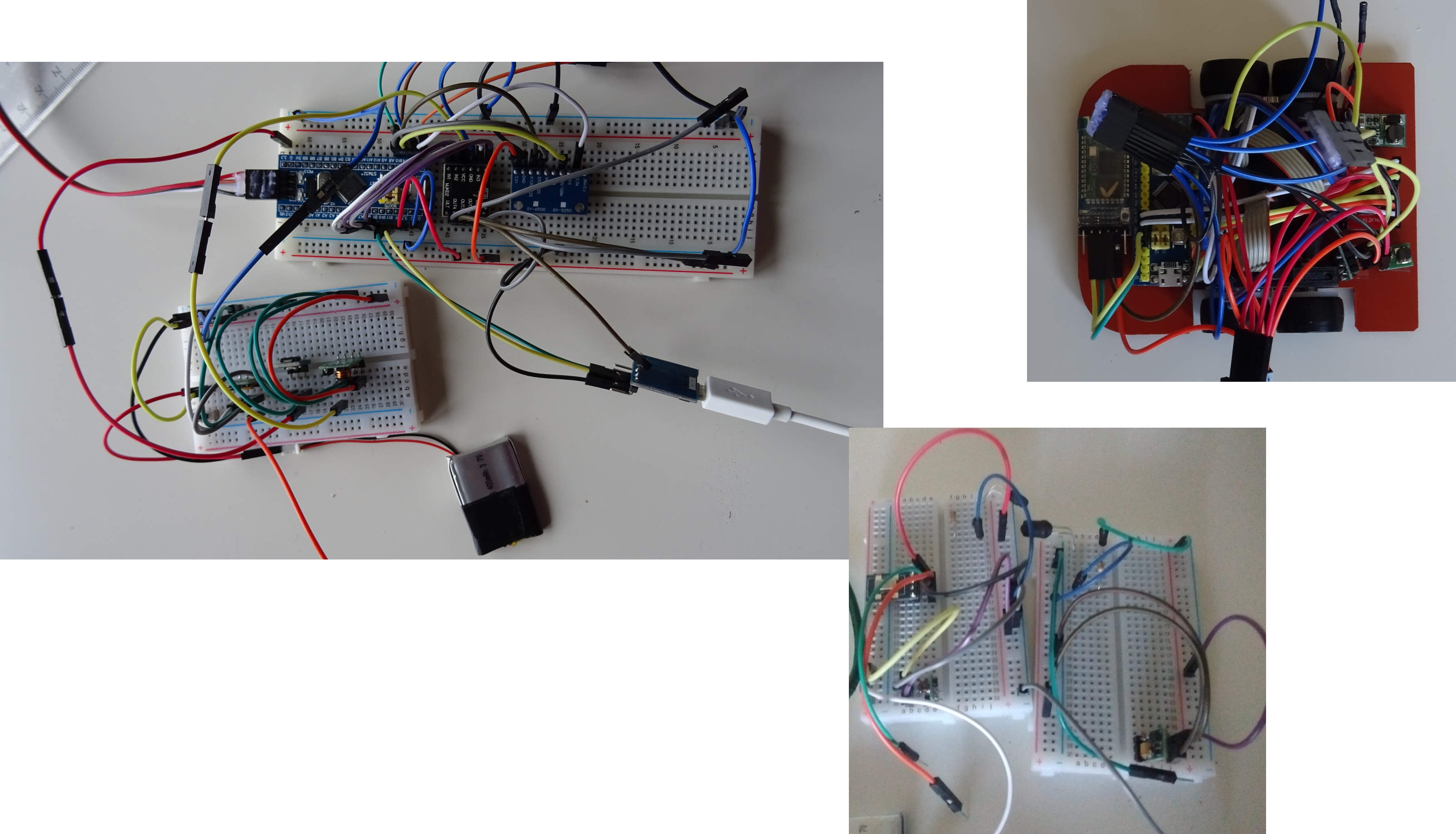

Prototyping

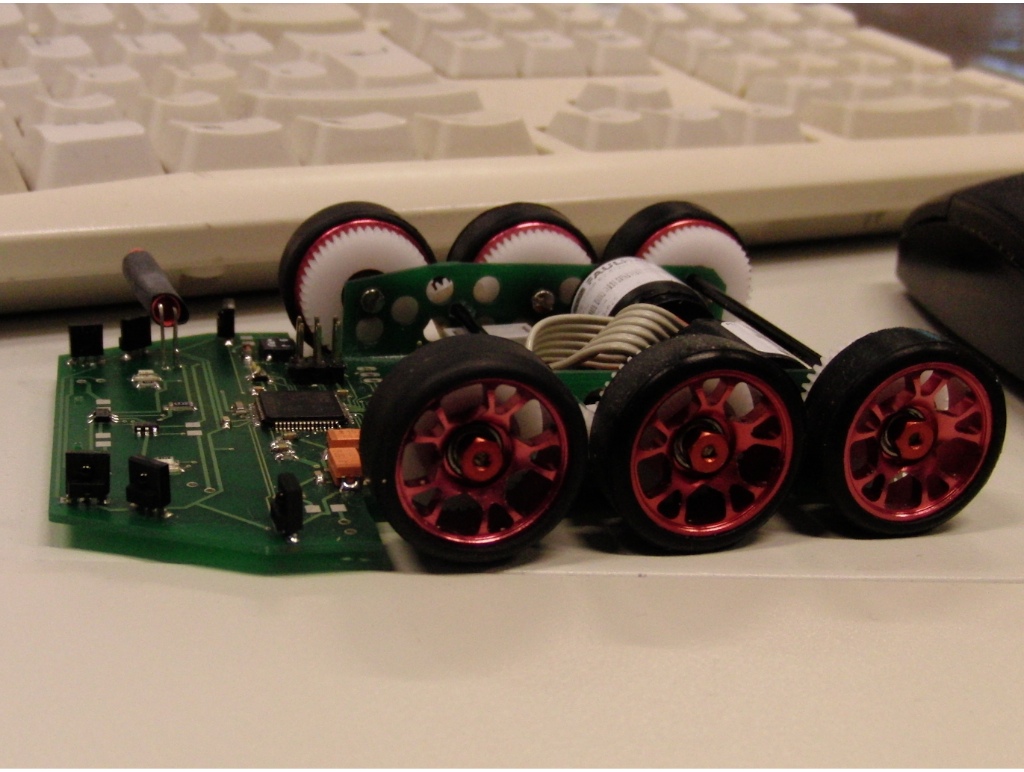

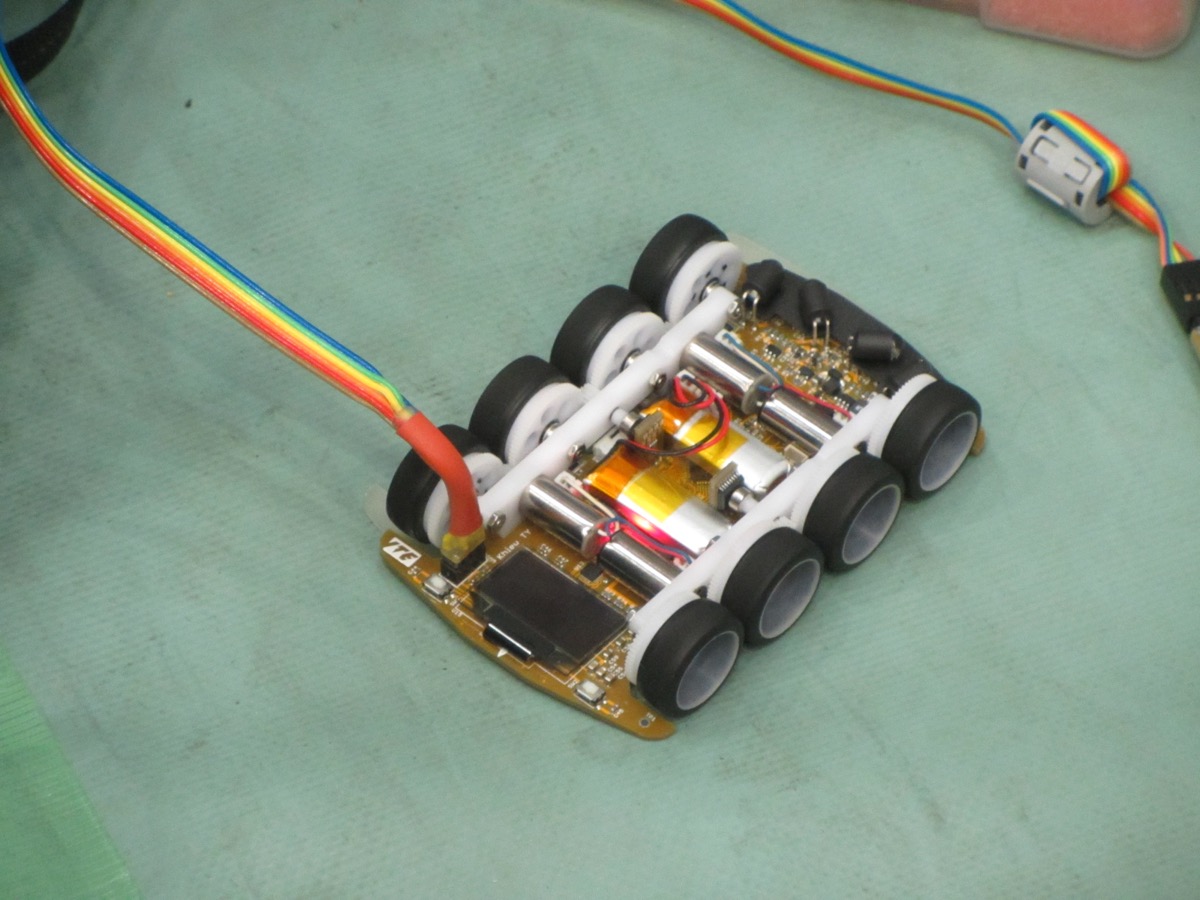

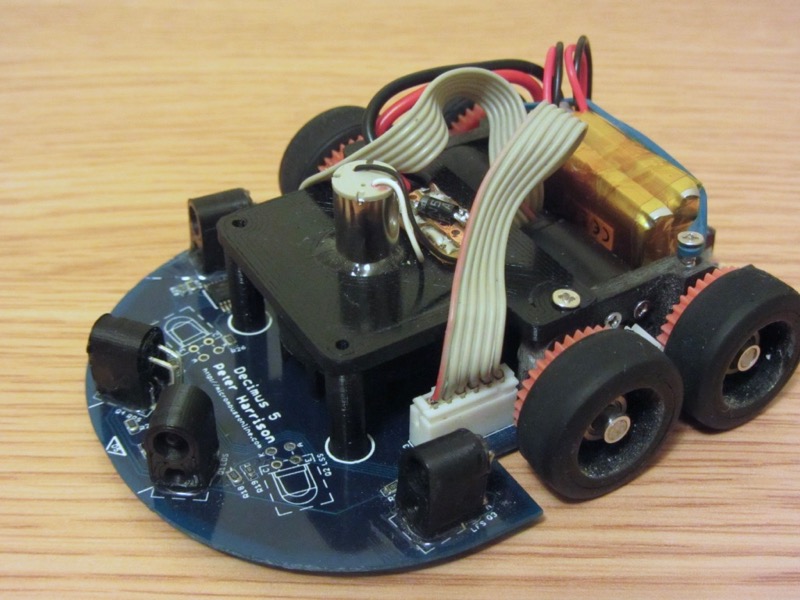

Wheels… but how many?

Image taken from micromouseusa.com

Image taken from micromouseonline.com

Image taken from micromouseonline.com

Image taken from micromouseonline.com

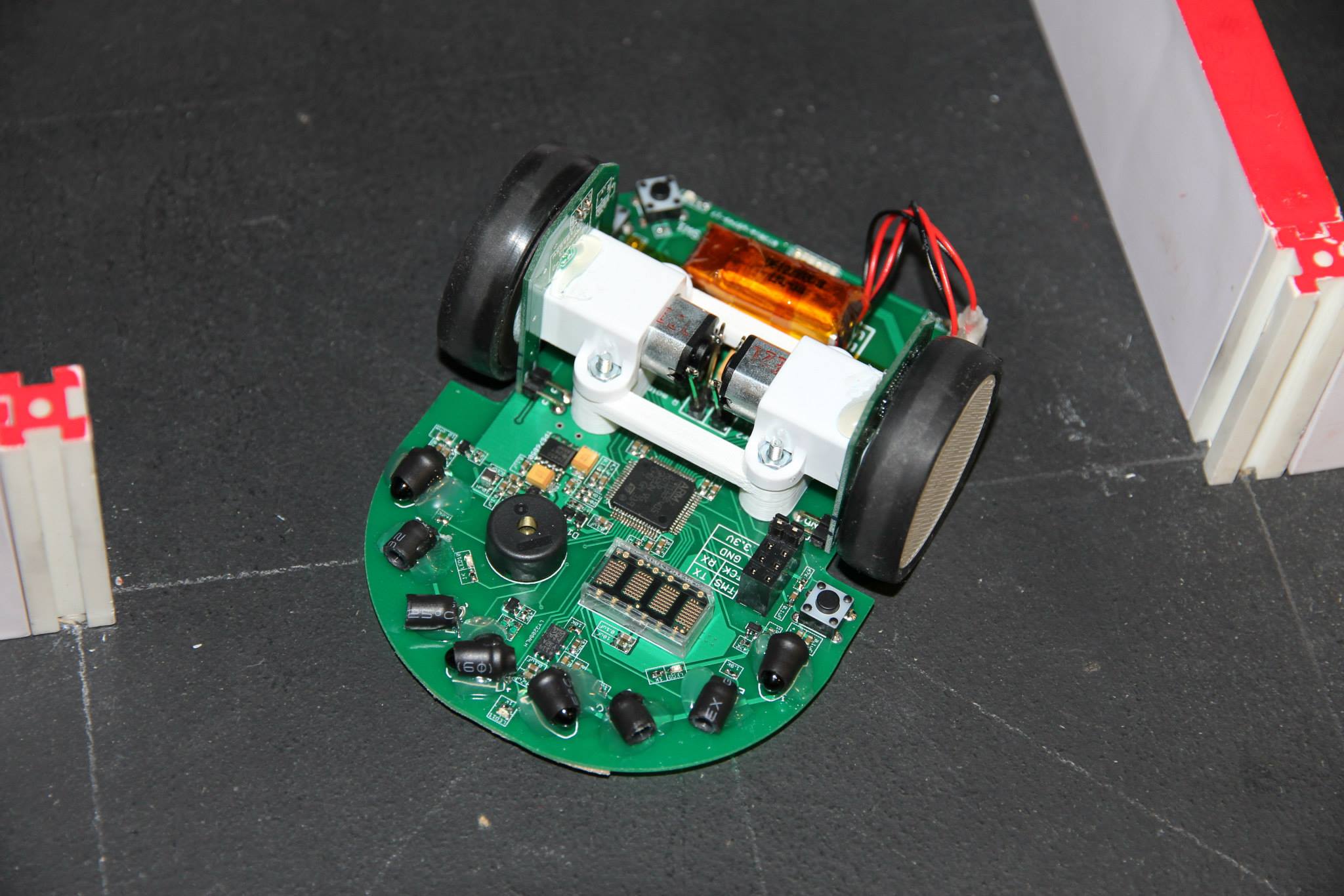

Better start with 2…

Image taken from http://haido.blog.jp/

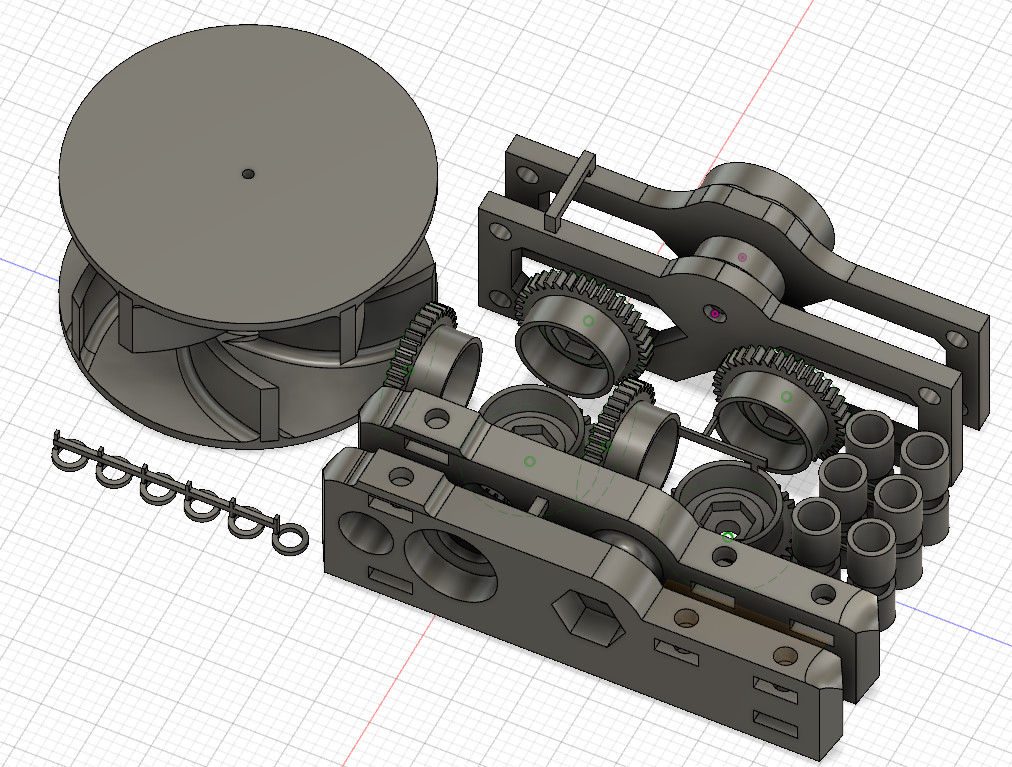

CAD designs

Image taken from http://haido.blog.jp/

And the fan?

Image taken from http://haido.blog.jp/

Goals 🎯

• Straight lines
• Turns
• 👍 😂

Limitations 😅

• Acceleration

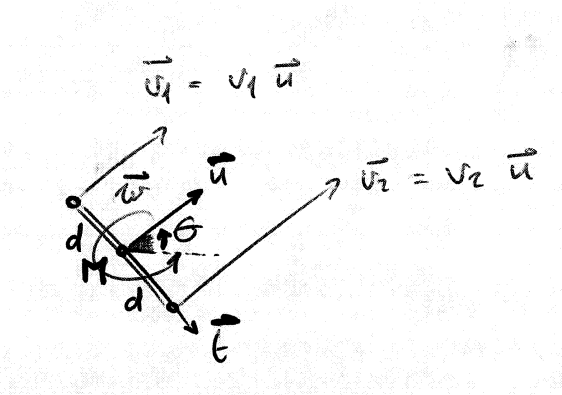

System

Angular velocity

\[ \begin{aligned} \overline{v_2} &= \overline{v_1} + \overline{w} \wedge \overline{r_{21}} \\ v_2 \overline{u} &= v_1 \overline{u} + (w \overline{u_z}) \wedge (2d \overline{t}) \\ v_2 &= v_1 + 2dw \\ \\ w &= \frac{v_2 - v_1}{2d} \end{aligned} \]

Linear velocity

\[ \begin{aligned} \overline{v_M} &= \overline{v_1} + \overline{w} \wedge \overline{r_{M1}} \\ v_M \overline{u} &= v_1 \overline{u} + (w \overline{u_z}) \wedge (d \overline{t}) \\ v_M &= v_1 + wd \\ &= v_1 + \left(\frac{v_2 - v_1}{2d}\right)d \\ \\ v_M &= \frac{v_1 + v_2}{2} \end{aligned} \]

Approach

• Neural networks?
• State space control?
• …

PID! 👍 😂

Feedback controller

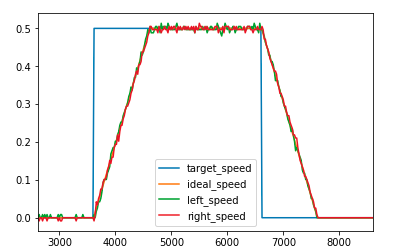

Speed profile

Calculating turns

From the motion equations:

\[ \begin{aligned} \dot{x} &= v_m cos \theta \\ \dot{y} &= v_m sin \theta \end{aligned} \]

Considering \(\dot{w} \equiv cte.\) and \(v_m \equiv cte.\):

\[ \theta = w_0 t + \frac{k}{d} t^2 \]

Discrete integration approximation

Why not?

\[ \omega = \omega_{max} sin\left(\frac{x}{\lambda}\right) \]

\[ \dot{\omega} = \frac{\omega_{max}}{\lambda} cos\left(\frac{x}{\lambda}\right) \]

Thanks Peter! 😄

Theoretical forces (straight)

\[ F_α = {mα \over 2} \]

Theoretical forces (turn)

Angular acceleration

\[ F_{Δω} = {IΔω \over 2T} \]

Centrifugal force

\[ F_ω = {mvω \over 2} \]

Forces on each tire

\[ F_R = \sqrt{(F_α + F_{Δω})^2 + F_ω^2} \\ F_L = \sqrt{(F_α - F_{Δω})^2 + F_ω^2} \]

While turning \(F_\alpha = 0\):

\[ F = \sqrt{\left({I\dot{\omega} \over 2T}\right)^2 + \left({mv\omega \over 2}\right)^2} \]

So… 🎉 🎉

\[ F = \sqrt{{I^2\omega_{max}^2 \over 4T^2\lambda^2} cos^2\left({x \over \lambda}\right) + {m^2 \omega_{max}^2 v^2 \over 4} sin^2\left({x \over \lambda}\right)} \]

\[ F = \sqrt{k_1 cos^2\left({x \over \lambda}\right) + k_2 sin^2\left({x \over \lambda}\right)} \]

If \(k_1 = k_2 = k_0^2\):

\[ F = k_0 \sqrt{cos^2\left({x \over \lambda}\right) + sin^2\left({x \over \lambda}\right)} = k_0 \]

Search turn trajectory

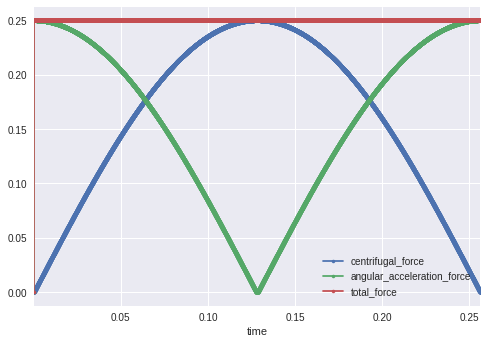

Search turn forces

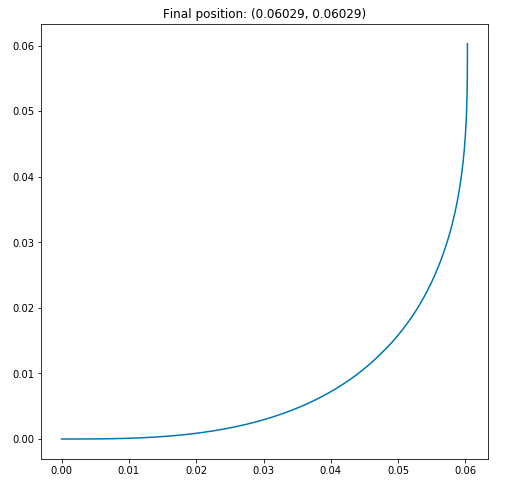

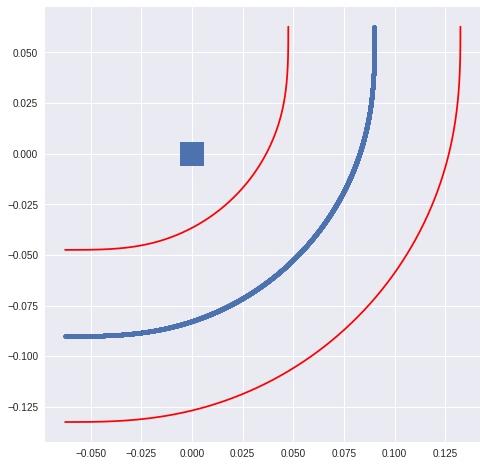

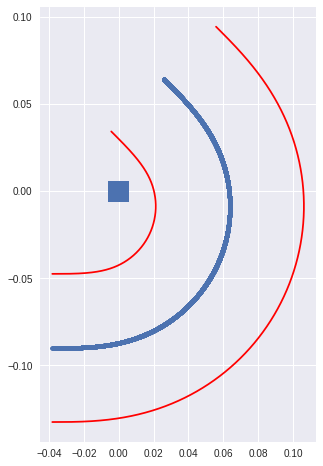

90° turn trajectory

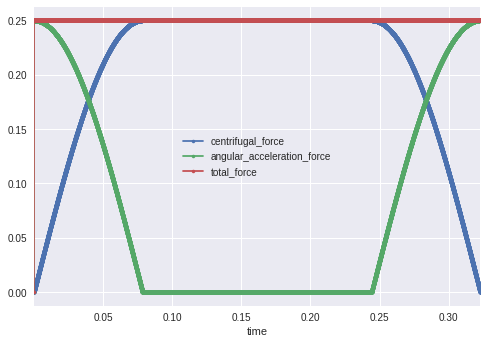

90° turn forces

Other trajectories

Notebook on GitHub

Advantages

• Constant force
• Linear speed does not affect turn parameters!

Floodfill 🌊

1. Assume there are no walls
2. Calculate distances to target
3. While goal not reached…
4. Go to the cell that is closest to the target
5. Update walls
6. Update distances

Update process 👀

# Initialize distances
distances = inf
for goal in goal_cells:
  queue.push(goal)
  distances[goal] = 0

# Flood fill
while not queue.is_empty():
    cell = queue.pop()
    distance = distances[cell] + 1
    for direction in ["east", "south", "west", "north"]:
        if cell.has_wall(direction):
            continue
        neighbor = cell.neighbor(direction)
        if distances[neighbor] <= distance:
            continue
        distances[neighbor] = distance
        queue.push(neighbor)

Sensors state machine

• 16 KHz trigger
• Sequentially power on and off
• 4 states * 4 sensors

Systick

• 1 KHz trigger
• Update ideal speed, encoder, distances
• Motor control

Main

• Setup
• Buttons, debug LEDs
• Speed profiles
• Algorithm
• Communication

Hardware

• Battery charger
• Power supply
• Programmer
• Soldering station
• Polimeter
• Logic analyzer
• Oscilloscope

Software

• C language - libopencm3, gcc, clang format
• Python - notebooks, scripts, communication
• Continuous integration - github, travis
• Reviews & management - github
• Documentation - doxygen, sphinx
• Board design - upverter

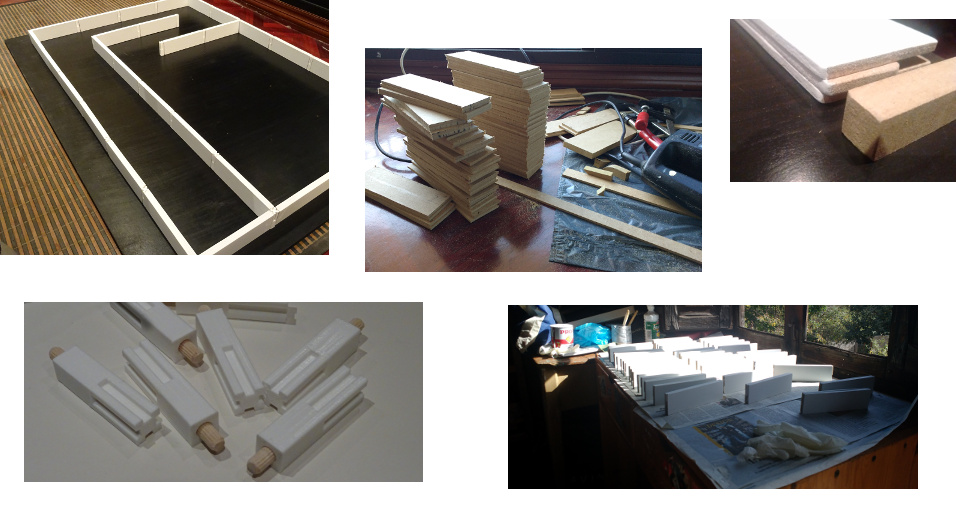

Maze

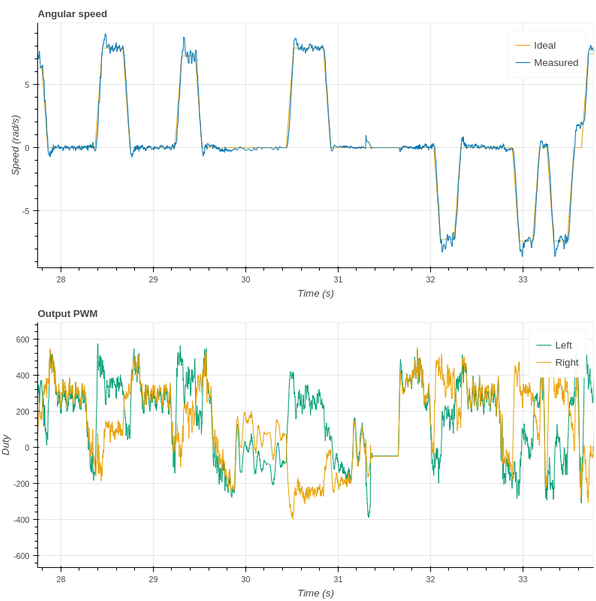

Plotting

Very optimistic costs

• Around 60 €
• Half is just for motors+encoders (second hand)
• Electronic parts and boards are really cheap (carefully selected)

Realistic costs

• Lots
• Replacements
• Shipping costs
• More than 100 €
• Not counting tools, maze…

And then…

Time… 😂

Resources 🔗

Bulebots

• github.com/Bulebots

• bulebule.readthedocs.io

Peter Harrison

• micromouseonline.com

Green Ye

• www.greenye.net

• micromouseusa.com
